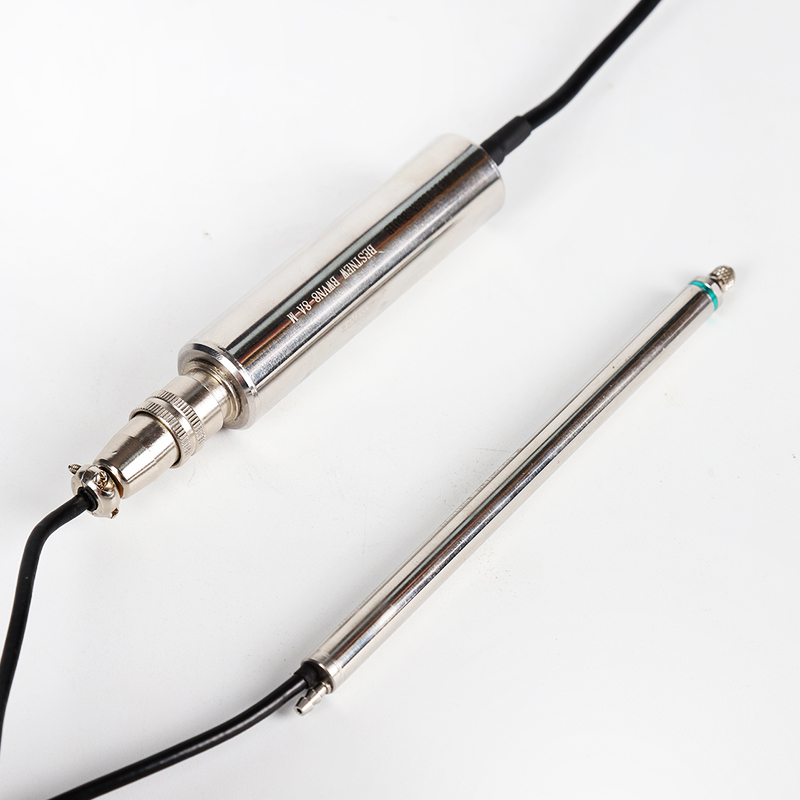

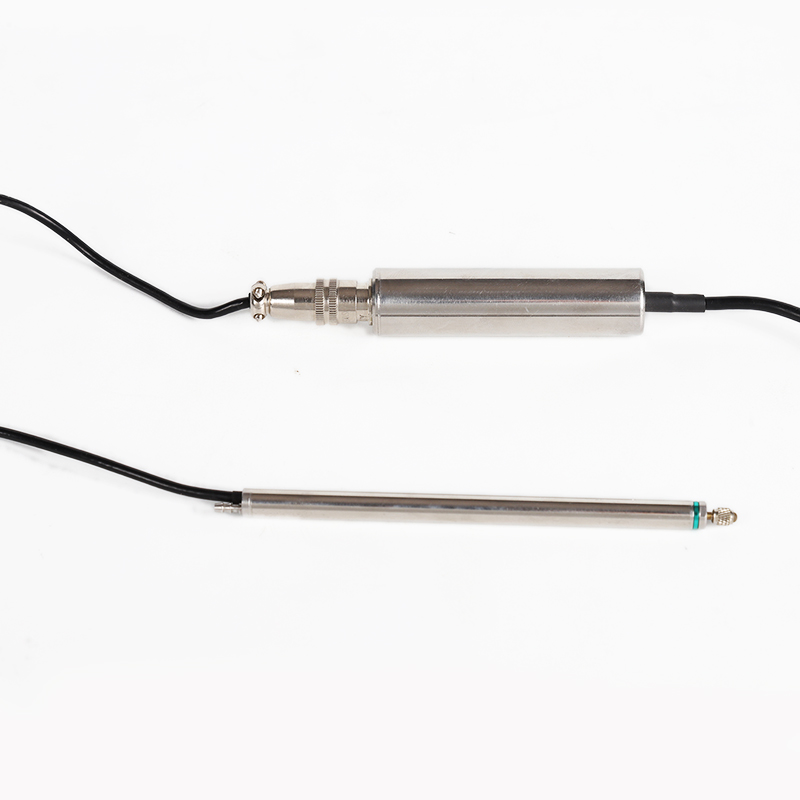

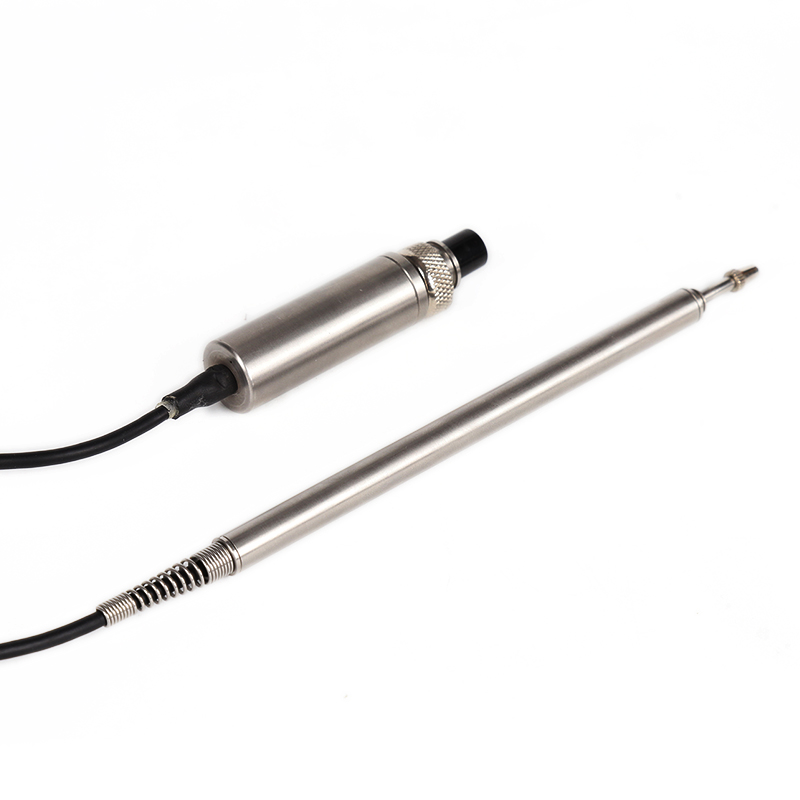

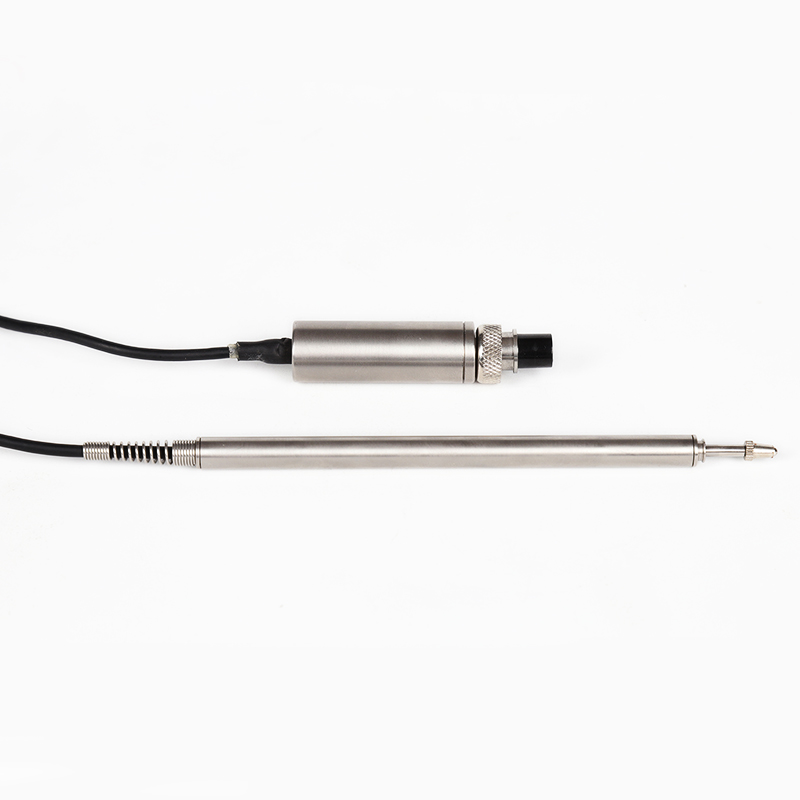

BWVH8 Pen Series
| Parameters | BWVH8 pen style | ||
| Displacement range (mm) | 2 | 5 | 8 |
| Overall length A(mm) | 65.5 | 115 | 121 |
| Natural state exposed length B (mm) | 19.6 | 23.3 | 30.3 |
Detailed Introduction
| LVDT | |
| Measuring range | 2mm; 5mm; 8mm |
| Ambient temperature | -20℃~80℃ |
| Protection level | IP67 |
| Power supply | Excitation voltage 3V rms |
| Working current | Excitation frequency 5KHz |
| Output signal | DC supply voltage) |
| DC supply voltage) | |
| (Second Line , 15-28V DC power supply voltage) | |
| (9-12V DC supply voltage ） | |
| Linear error | Simulation Output: ±0.25%, ±0.5% etc. optional; Digital output: 0.25%, 0.1% etc. optional |
| resolution | <=0.01% (maximum), digital output is 16bit |
| 3μm | |
| Use non-metallic clamps with a small temperature expansion coefficient to fix it. | |
